U74AHCT1G125 Datasheet, Gate, UTC

U74AHCT1G125 Features

  • Gate
  • Operation voltage range: 4.5V ~ 5.5V
  • Low power current: ICC=1μA (Max.)
  • ±8mA output drive at 5V
  • Inputs are TTL-voltage compatible
  • ORDER

PDF File Details

Part number:

U74AHCT1G125

Manufacturer:

UTC

File Size:

655.68kb

Download:

📄 Datasheet

Description:

Single bus buffer gate. The UTC U74AHCT1G125 is a single bus buffer gate with 3-state output controlled by enable input ( OE ), When OE is HIGH, the output i

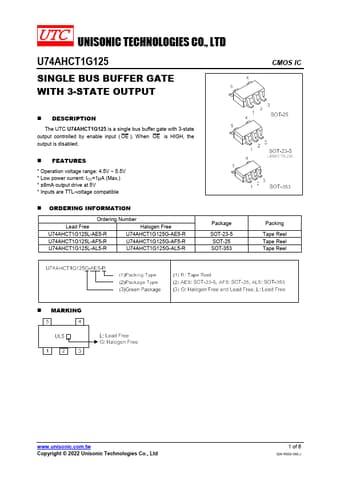

Datasheet Preview: U74AHCT1G125 📥 Download PDF (655.68kb)
Page 2 of U74AHCT1G125 Page 3 of U74AHCT1G125
