U74AHCT1G08 Datasheet, Gate, Unisonic Technologies

U74AHCT1G08 Features

  • Gate
  • Operation voltage range: 4.5V ~5.5V
  • Low Power Current: ICC=1μA (Max.)
  • ±8mA Output Drive at 5V
  • Inputs are TTL-Voltage Compatible CMOS IC

PDF File Details

Part number:

U74AHCT1G08

Manufacturer:

Unisonic Technologies

File Size:

146.89kb

Download:

📄 Datasheet

Description:

2-input and gate. The U74AHCT1G08 is a 2-input AND gate which provides the Function Y=A×B

  • FEATURES
  • Operation voltage range: 4.5V ~5

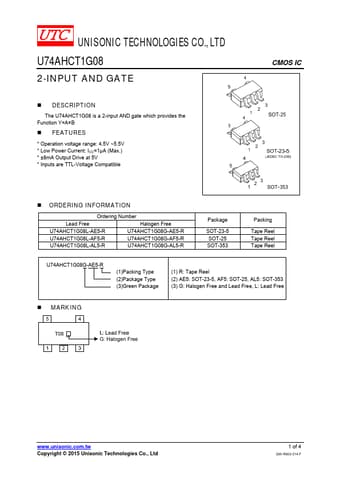

  • Datasheet Preview: U74AHCT1G08 📥 Download PDF (146.89kb)
    Page 2 of U74AHCT1G08 Page 3 of U74AHCT1G08
