U74AHCT1G00 Datasheet, Gate, Unisonic Technologies

U74AHCT1G00 Features

• Gate
• Low power Current: ICC=1.0μA (Max.)
• High speed: tPD=5ns (Typ.)
• High noise immunity CMOS IC
• ORDERING INFORMATION Ordering Number Lead Free Ha

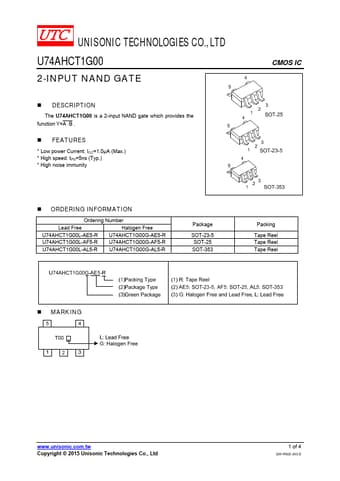

PDF File Details

Part number:

U74AHCT1G00

Manufacturer:

Unisonic Technologies

File Size:

216.39kb

Download:

📄 Datasheet

Description:

2-input nand gate. The U74AHCT1G00 is a 2-input NAND gate which provides the function Y=A B . FEATURES Low power Current: ICC=1.0μA
