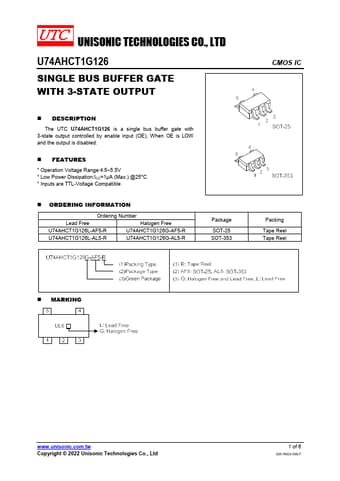

U74AHCT1G126 Datasheet, Gate, UTC

U74AHCT1G126 Features

• Gate
• Operation Voltage Range:4.5~5.5V
• Low Power Dissipation:ICC=1μA (Max.) @25°C
• Inputs are TTL-Voltage Compatible
• ORDERING INFORMATION Ordering Num

PDF File Details

Part number:

U74AHCT1G126

Manufacturer:

UTC

File Size:

641.31kb

Download:

📄 Datasheet

Description:

Single bus buffer gate. The UTC U74AHCT1G126 is a single bus buffer gate with 3-state output controlled by enable input (OE), When OE is LOW and the output i
