U74AHCT1G14 Datasheet, Inverter, Unisonic Technologies

U74AHCT1G14 Features

  • Inverter
  • Operation voltage range: 4.5V ~5.5V
  • Low Power Current: ICC=1μA (Max.)
  • ±8mA Output Drive at 5V
  • Inputs are TTL-Voltage Compatible
  • ORDERI

PDF File Details

Part number:

U74AHCT1G14

Manufacturer:

Unisonic Technologies

File Size:

654.36kb

Download:

📄 Datasheet

Description:

Single schmitt-trigger inverter. The U74AHCT1G14 is a single schmitt-trigger inverter providing the function Y = A . The gates of device have different input threshol

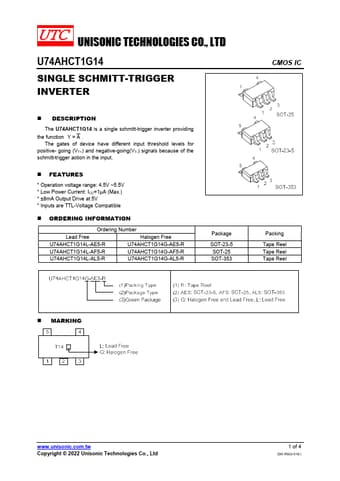

Datasheet Preview: U74AHCT1G14 📥 Download PDF (654.36kb)
Page 2 of U74AHCT1G14 Page 3 of U74AHCT1G14
