U74HCT374 Datasheet, Flip-flops, Unisonic Technologies

U74HCT374 Features

  • Flip-flops
  • Inputs are TTL-Voltage Compatible
  • Operate from 4.5V to 5.5V
  • Inputs Accept Voltages to 5.5V
  • Max tpd of 25ns at VCC=5.5V, CL=50pF
  • Typ VO

PDF File Details

Part number:

U74HCT374

Manufacturer:

Unisonic Technologies

File Size:

288.05kb

Download:

📄 Datasheet

Description:

Octal edge-triggered d-type flip-flops. CMOS IC The U74HCT374 is a octal edge-triggered D-type flip-flops with 3-state outputs and it has 8 channels. When the OE input is

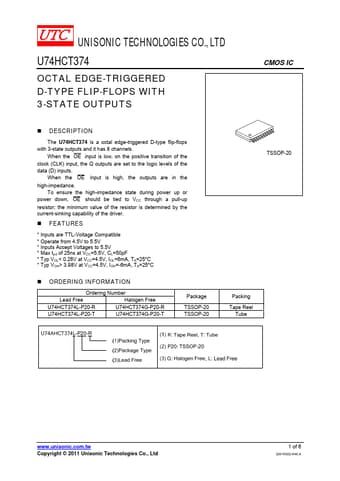

Datasheet Preview: U74HCT374 📥 Download PDF (288.05kb)
Page 2 of U74HCT374 Page 3 of U74HCT374
