U74HCT3G04 - INVERTER

U74HCT3G04 Description

UNISONIC TECHNOLOGIES CO., LTD U74HCT3G04 INVERTER * .
The U74HCT3G04 provides three inverters, it is compatible with TTL. FEATURES. Low power dissipation. High speed. High noise immun.

U74HCT3G04 Features

* Low power dissipation
* High speed
* High noise immunity CMOS IC MSOP-8 TSSOP-8
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HCT3G04L-SM1-R U74HCT3G04G-SM1-R U74HCT3G04L-P08-R U74HCT3G04G-P08-R Package MSOP-8 TSSOP-8 Packing Tape Reel Tape Reel

📥 Download Datasheet

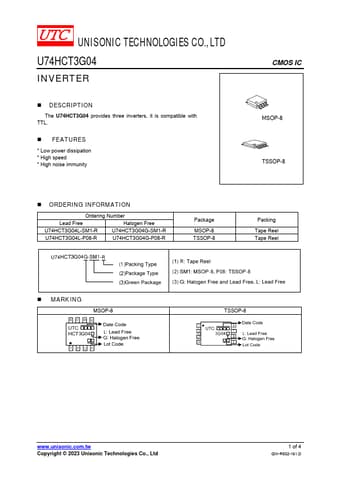

Preview of U74HCT3G04 PDF
datasheet Preview Page 2 datasheet Preview Page 3
