U74LVC1G99 - ULTRA-CONFIGURABLE MULTIPLE- FUMCTION GATE

Unisonic Technologies

U74LVC1G99 Datasheet Preview — Preview of U74LVC1G99 PDF

Datasheet Details

Part number	U74LVC1G99
Manufacturer	Unisonic Technologies
File Size	246.37 KB
Description	ULTRA-CONFIGURABLE MULTIPLE- FUMCTION GATE
Datasheet	U74LVC1G99_UnisonicTechnologies.pdf

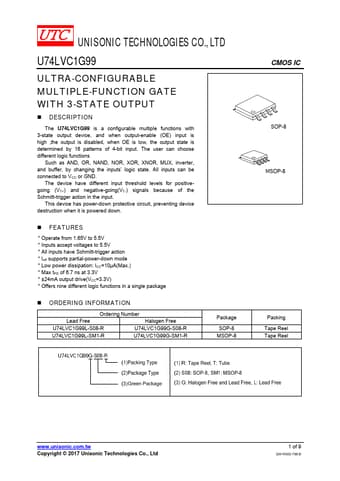

U74LVC1G99 Product details

Description

The U74LVC1G99 is a configurable multiple functions with 3-state output device, and when output-enable (OE) input is high ,the output is disabled, when OE is low, the output state is determined by 16 patterns of 4-bit input.

Features

Operate from 1.65V to 5.5V.
Inputs accept voltages to 5.5V.
All inputs have Schmitt-trigger action.
Ioff supports partial-power-down mode.
Low power dissipation: ICC=10μA(Max. ).
Max tPD of 6.7 ns at 3.3V.
±24mA output drive(VCC=3.3V).
Offers nine different logic functions in a single package.
