U74LVC2G86 - DUAL 2-INPUT EXCLUSIVE-OR GATE

Product Overview

Unisonic Technologies

📥 Download Datasheet

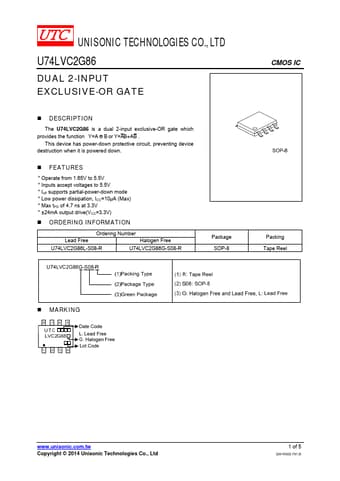

U74LVC2G86 DUAL 2-INPUT EXCLUSIVE-OR GATE by Unisonic Technologies - Datasheet Preview — Datasheet preview – U74LVC2G86

Datasheet Details

Part number	U74LVC2G86
Manufacturer	Unisonic Technologies
File Size	199.77 KB
Description	DUAL 2-INPUT EXCLUSIVE-OR GATE
Datasheet	U74LVC2G86 Datasheet
Additional preview pages of the U74LVC2G86 datasheet.

Product details

Description

The U74LVC2G86 is a dual 2-input exclusive-OR gate which provides the function Y=A  B or Y=AB+AB .

Features

Operate from 1.65V to 5.5V.
Inputs accept voltages to 5.5V.
Ioff supports partial-power-down mode.
Low power dissipation, ICC=10μA (Max).
Max tPD of 4.7 ns at 3.3V.
±24mA output drive(VCC=3.3V).
