CHA2260-QAG Datasheet, Amplifier, United Monolithic Semiconductors

CHA2260-QAG Features

  • Amplifier
  • Broadband performance: 18-27GHz
  • 26dB Gain
  • 2.2dB Noise Figure
  • 13dBm Pout
  • 23dBm Output IP3
  • DC bias: Vd=3.5Volt@Id=65mA

PDF File Details

Part number:

CHA2260-QAG

Manufacturer:

United Monolithic Semiconductors

File Size:

485.59kb

Download:

📄 Datasheet

Description:

18-27ghz low noise amplifier. The CHA2260-QAG is a low noise amplifier monolithic circuit, which integrates 3-stages self biased. It is designed for a wide range o

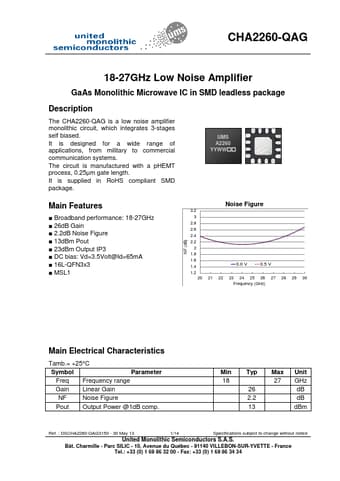

Datasheet Preview: CHA2260-QAG 📥 Download PDF (485.59kb)
Page 2 of CHA2260-QAG Page 3 of CHA2260-QAG

CHA2260-QAG Application

  • Applications from military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length. It is supplie
