CHA2411-QDG Low Noise Amplifier

CHA2411-QDG Description

CHA2411-QDG 20-25GHz Low Noise Amplifier GaAs Monolithic Microwave IC in SMD leadless package .
The CHA2411-QDG is a K-band low noise amplifier providing 26dB gain with a noise figure of 2.

CHA2411-QDG Features

* Broadband performances: 20-25GHz
* Excellent 2.5dB Noise figure
* 26dB  2dB stable Gain vs Temperature
* DC bias: Vd=5.0 Volt @ +I=43mA
* 24L-QFN4x4 SMD leadless package
* MSL1 S21(dB) Functional diagram CHA2411QDG - Lot 1004GA S21(dB) Gain versus frequency 30 -40°C

📥 Download Datasheet

Preview of CHA2411-QDG PDF

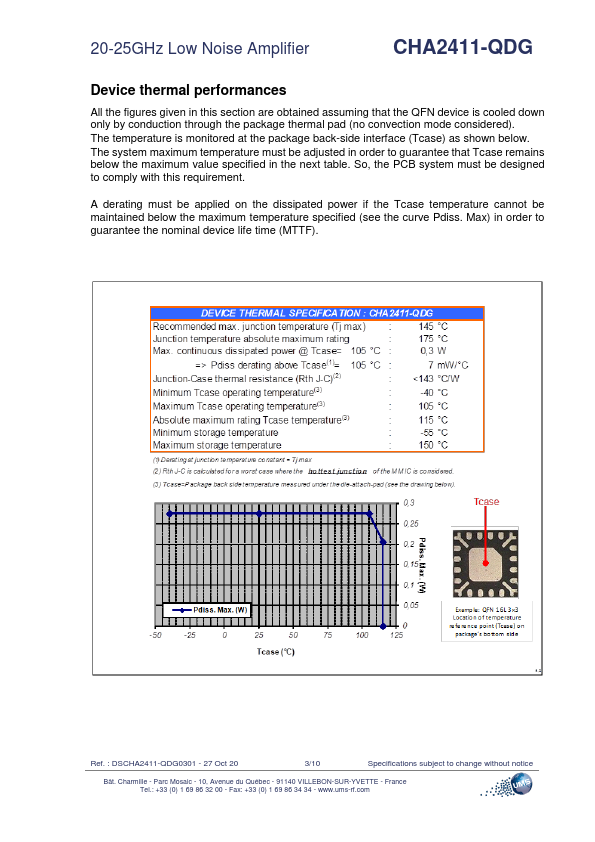

datasheet Preview Page 2 datasheet Preview Page 3
