CHR2292 Datasheet, Converter, United Monolithic Semiconductors

CHR2292 Features

  • Converter
  • Conversion Gain & Image suppression (dB) 16 12 8 4 0 -4 -8 -12 -16 -20 12 14 Broadband performances : 17-20GHz 13d

PDF File Details

Part number:

CHR2292

Manufacturer:

United Monolithic Semiconductors

File Size:

124.39kb

Download:

📄 Datasheet

Description:

17-20ghz integrated down converter. The CHR2292 is a multifunction chip which integrates a LO time two multiplier, a balanced cold FET mixer, and a RF LNA. It is designe

Datasheet Preview: CHR2292 📥 Download PDF (124.39kb)

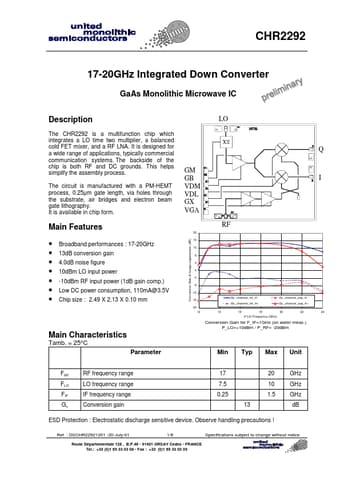

Page 2 of CHR2292 Page 3 of CHR2292

CHR2292 Application

  • Applications typically commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly proce
