CHR2293 Datasheet, Converter, United Monolithic Semiconductors

CHR2293 Features

  • Converter
  • Broadband performances : 20-24GHz 11 dB conversion gain 4dB noise figure 10dBm LO input power -8dBm RF input power

PDF File Details

Part number:

CHR2293

Manufacturer:

United Monolithic Semiconductors

File Size:

97.18kb

Download:

📄 Datasheet

Description:

20-24ghz integrated down converter. The CHR2293 is a multifunction chip which integrates a LO X2 multiplier, a balanced cold FET mixer, and a RF LNA. It is designed for

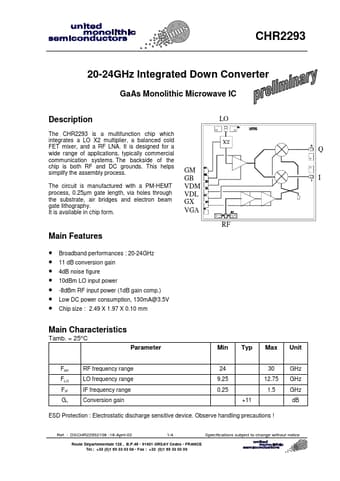

Datasheet Preview: CHR2293 📥 Download PDF (97.18kb)
Page 2 of CHR2293 Page 3 of CHR2293

CHR2293 Application

  • Applications typically commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly proce
