CHR2294 Datasheet, Microwave, United Monolithic Semiconductors

CHR2294 Features

  • Microwave Broadband performances: 25-35GHz 11dB conversion Loss 15dBc image rejection +9dBm LO input power +2.5dBm input power (1dB gain comp.) Low DC power consumption, 55mA@4V Chip size: 2.06 x

PDF File Details

Part number:

CHR2294

Manufacturer:

United Monolithic Semiconductors

File Size:

200.26kb

Download:

📄 Datasheet

Description:

Gaas monolithic microwave. The CHR2294 is a multifunction chip (MFC) which integrates a self biased LO buffer amplifier and a sub-harmonically balanced diodes

Datasheet Preview: CHR2294 📥 Download PDF (200.26kb)

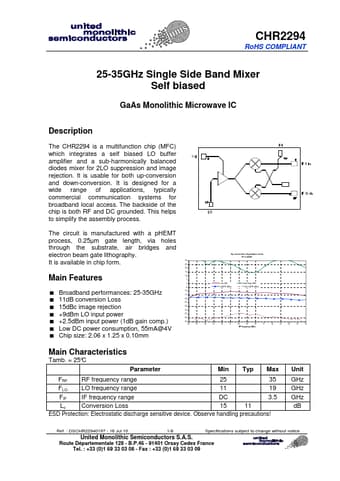

Page 2 of CHR2294 Page 3 of CHR2294

CHR2294 Application

  • Applications typically commercial communication systems for broadband local access. The backside of the chip is both RF and DC grounded. This helps
