CHR2295 Datasheet - United Monolithic Semiconductors

CHR2295 24-30GHz Integrated Down Converter

The CHR2295 is a multifunction chip which integrates a LO time two multiplier, a balanced cold FET mixer, and a RF LNA. It is designed for a wide range of applications, typically commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly pr.

CHR2295 Features

* Broadband performances : 24-30GHz 11 dB conversion gain 3.5.0dB noise figure 10dBm LO input power -10dBm RF input power (1dB gain comp.) Low DC power consumption, 120mA@3.5V Chip size : 2.49 X 1.97 X 0.10 mm Gc_channel_sup_rf+ Gc

CHR2295_UnitedMonolithicSemiconductors.pdf

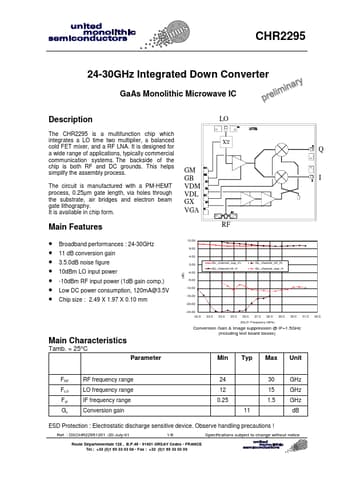

Preview of CHR2295 PDF
CHR2295 Datasheet Preview Page 2 CHR2295 Datasheet Preview Page 3

Datasheet Details

Part number:

CHR2295

Manufacturer:

United Monolithic Semiconductors

File Size:

144.87 KB

Description:

24-30ghz integrated down converter.
