CHR2295-99F Datasheet, Converter, United Monolithic Semiconductors

CHR2295-99F Features

  • Converter
  • Broadband performances: 24-30GHz
  • 11dB conversion gain
  • 3.5dB noise figure, for IF>0.1GHz
  • 10dBm LO input power
  • -10dBm RF IP@1dB gain comp

PDF File Details

Part number:

CHR2295-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

140.59kb

Download:

📄 Datasheet

Description:

Integrated down converter. LO The CHR2295-99F is a multifunction chip which integrates a LO time two multiplier, a balanced cold FET mixer, and a RF LNA. It i

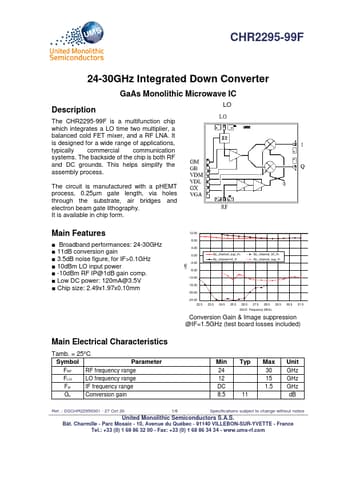

Datasheet Preview: CHR2295-99F 📥 Download PDF (140.59kb)
Page 2 of CHR2295-99F Page 3 of CHR2295-99F

CHR2295-99F Application

  • Applications typically commercial communication systems. The backside of the chip is both RF and DC grounds. This helps simplify the assembly proce
