Datasheet Specifications
- Part number
- AO3408
- Manufacturer
- VBsemi
- File Size
- 227.37 KB
- Datasheet
- AO3408-VBsemi.pdf
- Description
- N-Channel 30V MOSFET
Description

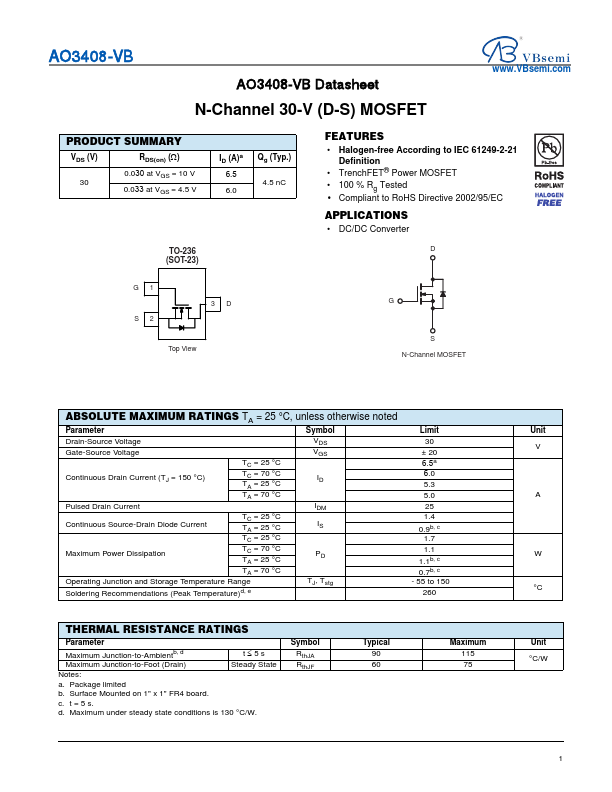

AO3408-VB AO3408-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.030 at VGS = 10 V 30 0.033 at VGS.
Features
* Halogen-free According to IEC 61249-2-21 DefinitionApplications
* DC/DC Converter D G1 S2 3D Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °CAO3408 Distributors
