FDD2582 - N-Channel 150V MOSFET

FDD2582 Description

FDD2582 N-Channel 150 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) 150 RDS(on) (Ω) 0.074 at VGS = 10 V 0.077 at VGS = 8 V ID (A)a 25.4 2.

FDD2582 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Extremely Low Qgd for Switching Losses
* 100 % Rg Tested
* 100 % Avalanche Tested

FDD2582 Applications

* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C Pulsed Drain Current Continuo

📥 Download Datasheet

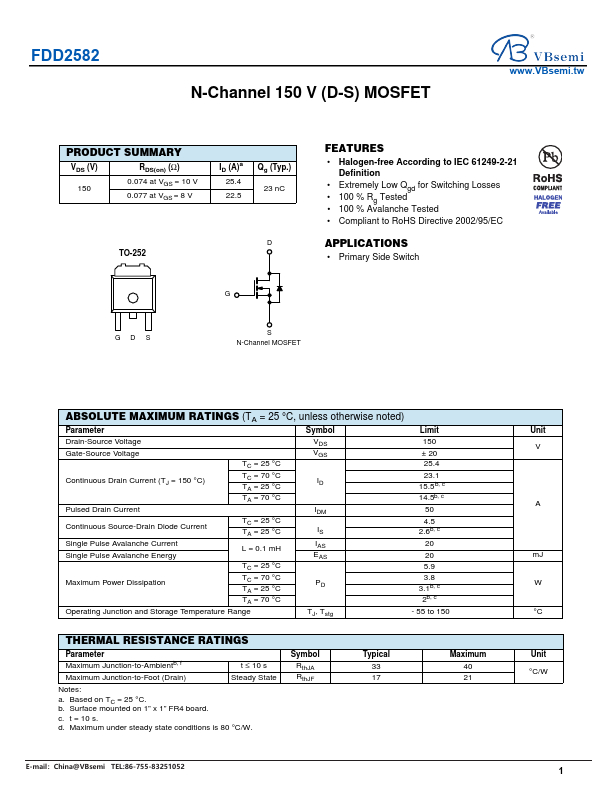

Preview of FDD2582 PDF

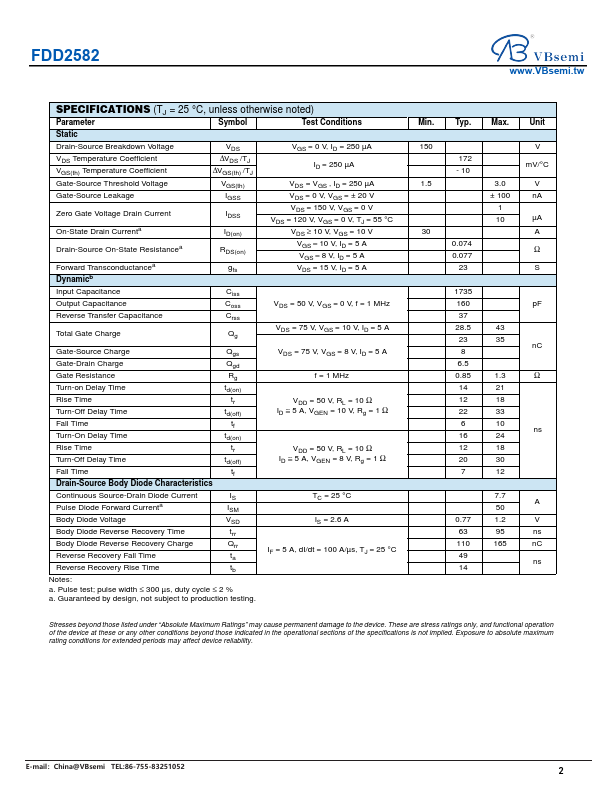

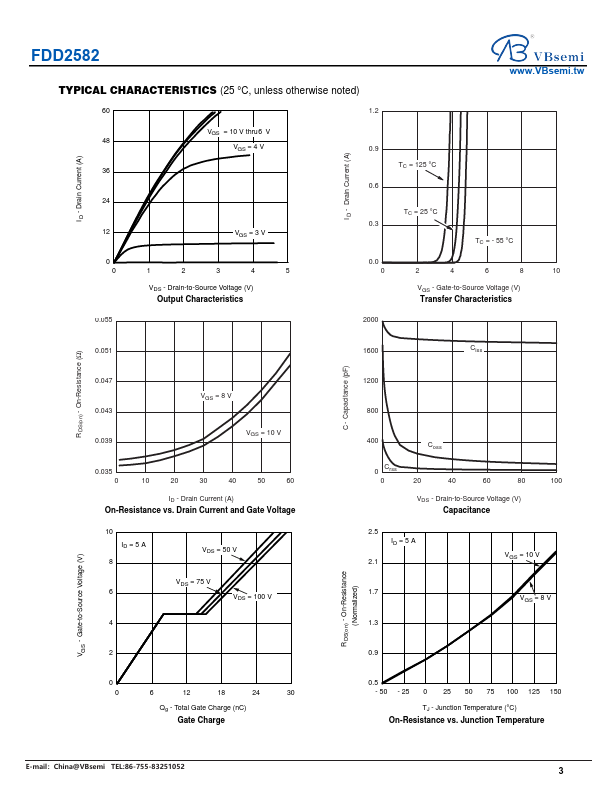

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FDD2582
Manufacturer
VBsemi
File Size
842.77 KB
Datasheet
FDD2582-VBsemi.pdf
Description
N-Channel 150V MOSFET
