FDD3N50NZ - Power MOSFET

FDD3N50NZ Description

FDD3N50NZ Power MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 650 VGS = 10 V 1.8 48 .

FDD3N50NZ Features

* Low Gate Charge Qg Results in Simple Drive Requirement
* Improved Gate, Avalanche and Dynamic dV/dt Ruggedness Available RoHS
* COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Compliant to RoHS directive 2002/95/EC TO-252 GDS

📥 Download Datasheet

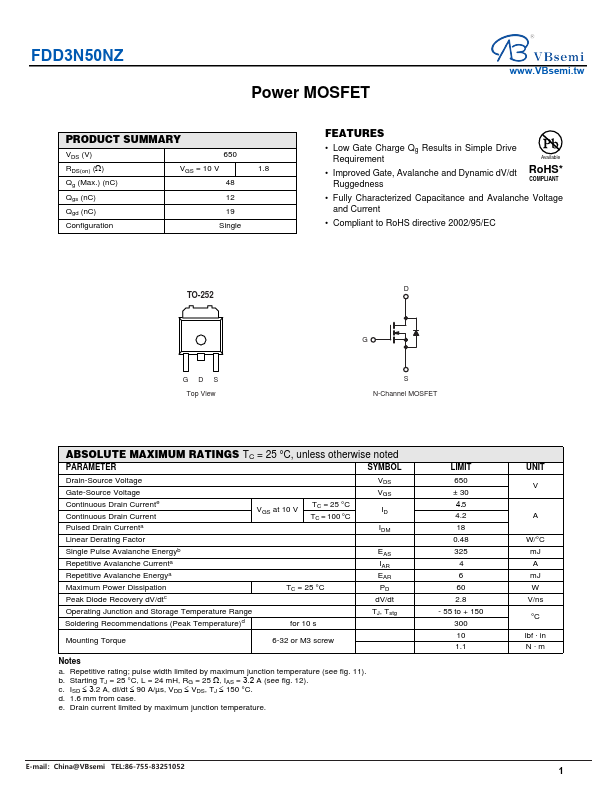

Preview of FDD3N50NZ PDF

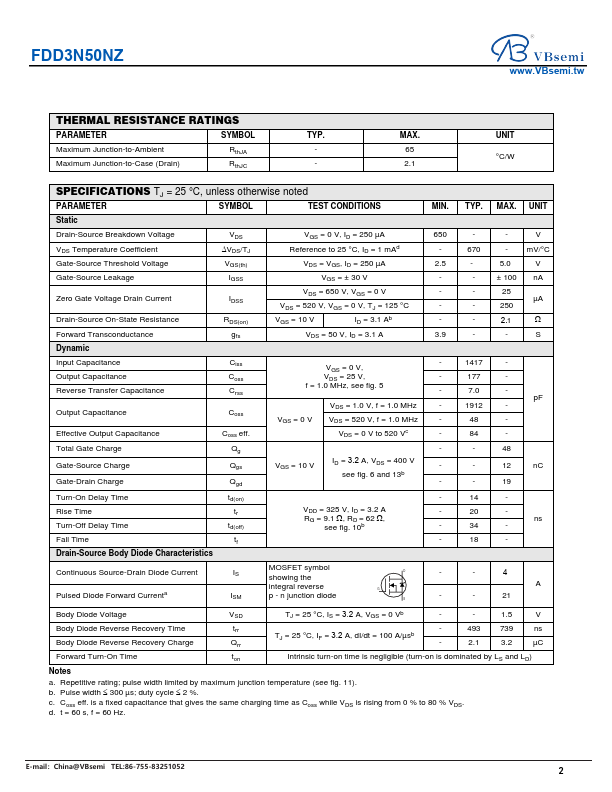

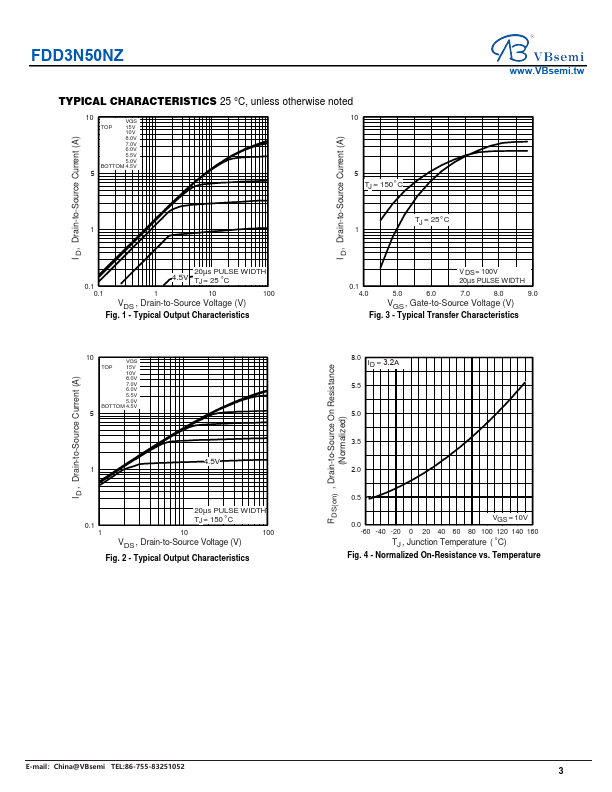

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FDD3N50NZ
Manufacturer
VBsemi
File Size
872.06 KB
Datasheet
FDD3N50NZ-VBsemi.pdf
Description
Power MOSFET
