P7NC80ZFP N-Channel 800V Power MOSFET

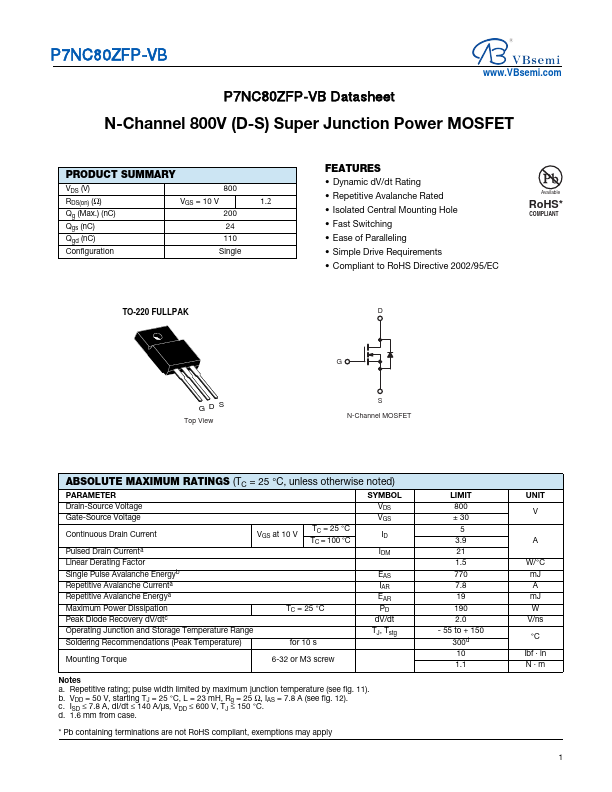

📥 Download Datasheet  Datasheet Preview Page 1

Description

P7NC80ZFP-VB www.VBsemi.com P7NC80ZFP-VB Datasheet N-Channel 800V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.).

📥 Download Datasheet

Preview of P7NC80ZFP PDF

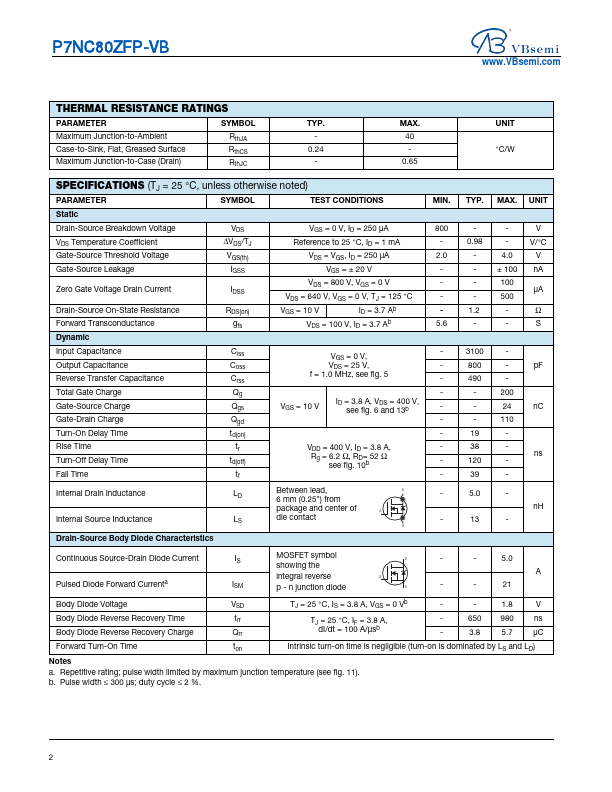

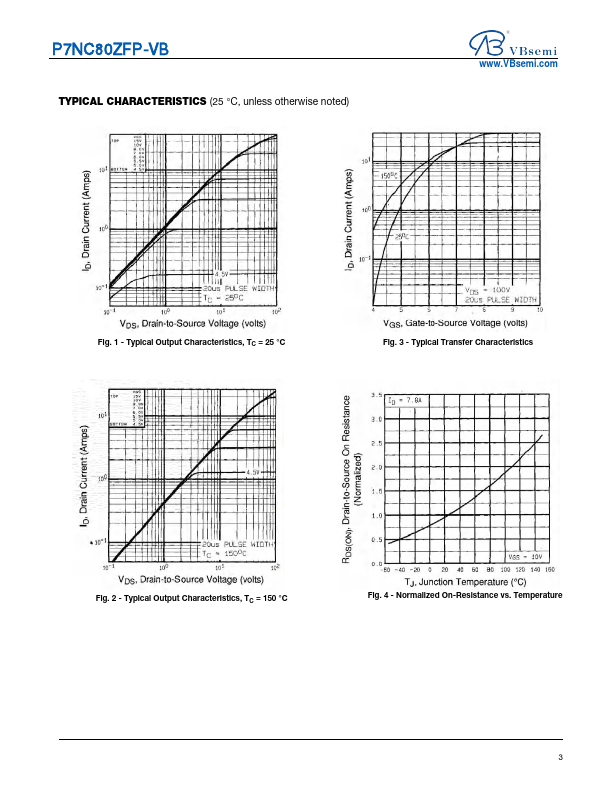

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
P7NC80ZFP
Manufacturer
VBsemi
File Size
441.96 KB
Datasheet
P7NC80ZFP-VBsemi.pdf
Description
N-Channel 800V Power MOSFET

Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220 FULLPAK D
