STH9NA80, N-Channel 800V Power MOSFET

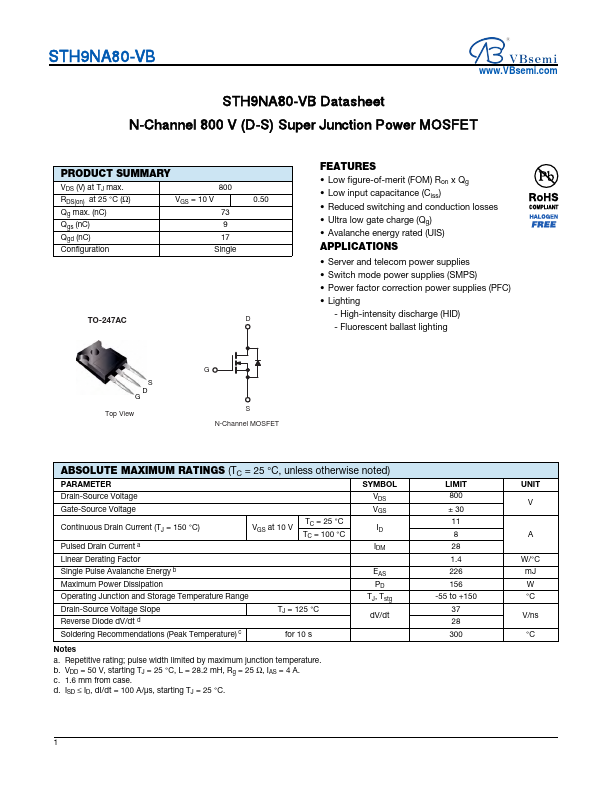

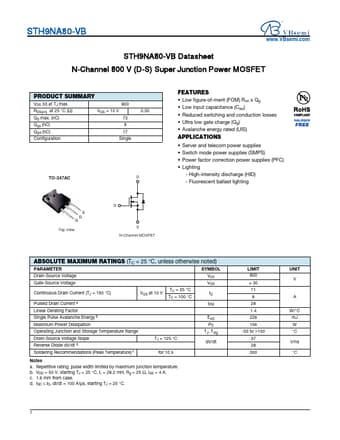

STH9NA80-VB www.VBsemi.com STH9NA80-VB Datasheet N-Channel 800 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at 2.

Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting S D G Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °
