STH9NA80FI Datasheet - STMicroelectronics

STH9NA80FI N-channel Power MOSFET

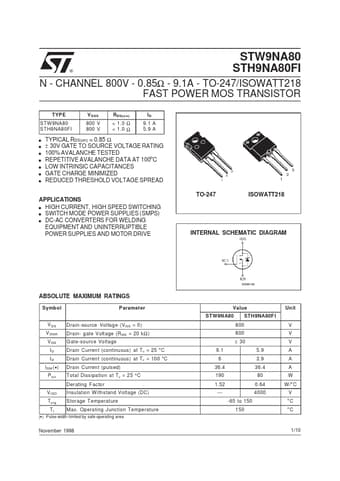

STW9NA80 ® STH9NA80FI N - CHANNEL 800V - 0.85Ω - 9.1A - TO-247/ISOWATT218 FAST POWER MOS TRANSISTOR TYPE S TW 9NA8 0 STH9NA80FI V DSS 800 V 800 V RDS(on) < 1.0 Ω < 1.0 Ω ID 9.1 A 5.9 A s TYPICAL RDS(on) = 0.85 Ω s ± 30V GATE TO SOURCE VOLTAGE RATING s 100% AVALANCHE TESTED s REPETITIVE AVALANCHE DATA AT 100oC s LOW INTRINSIC CAPACITANCES s GATE CHARGE MINIMIZED s REDUCED THRESHOLD VOLTAGE SPREAD APPLICATIONS s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-A.

STH9NA80FI Datasheet (129.69 KB)

Preview of STH9NA80FI PDF
STH9NA80FI Datasheet Preview Page 2 STH9NA80FI Datasheet Preview Page 3

Datasheet Details

Part number:

STH9NA80FI

Manufacturer:

STMicroelectronics ↗

File Size:

129.69 KB

Description:

N-channel power mosfet.
