TSM2312CX - N-Channel 20V MOSFET

TSM2312CX Description

TSM2312CX-VB TSM2312CX-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 4.5 V 20 0.0.

TSM2312CX Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested

TSM2312CX Applications

* DC/DC Converters
* Load Switch for Portable Applications D G1 S2 3D Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150

📥 Download Datasheet

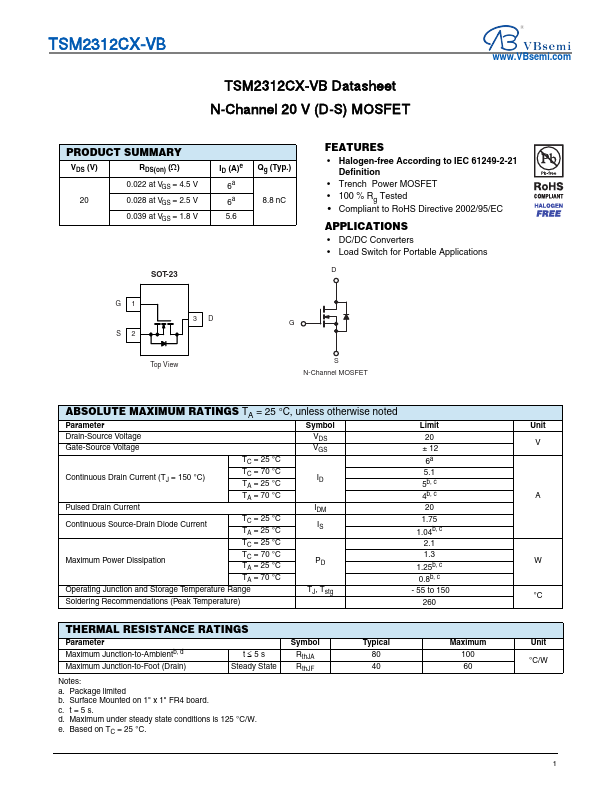

Preview of TSM2312CX PDF

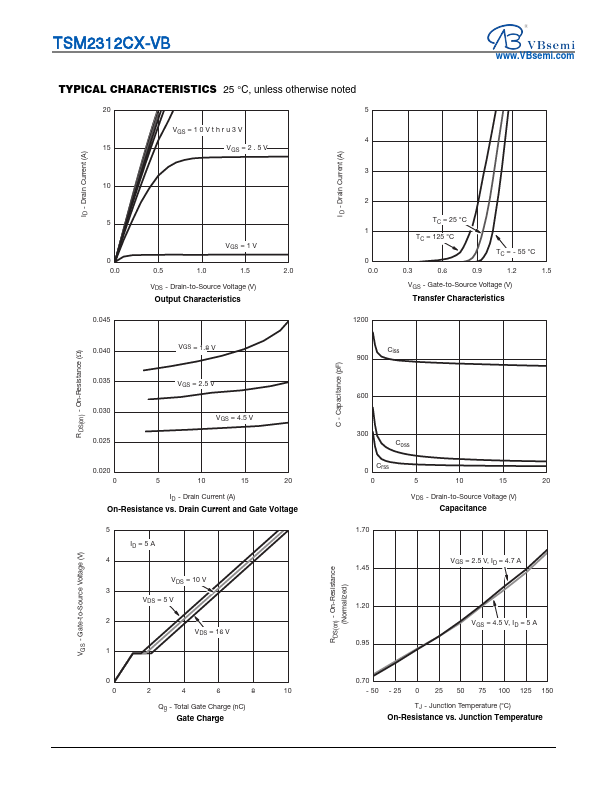

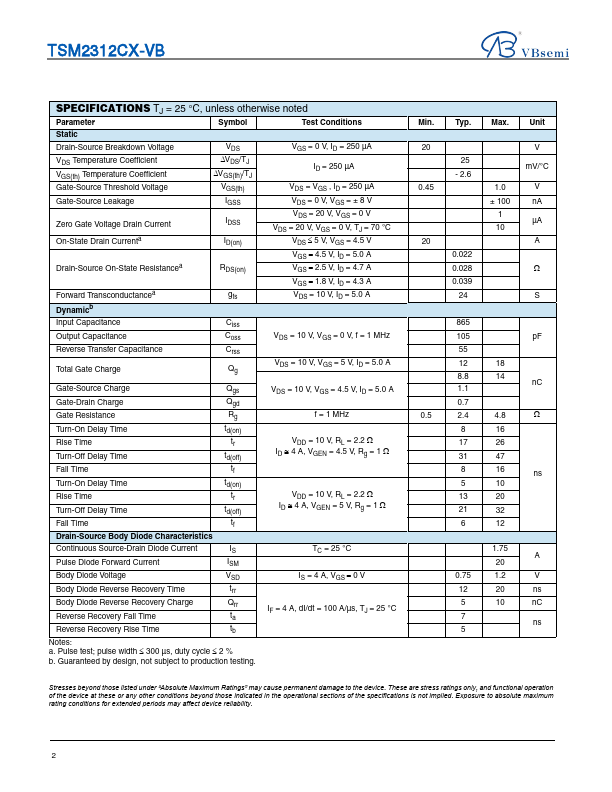

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TSM2312CX
Manufacturer
VBsemi
File Size
236.88 KB
Datasheet
TSM2312CX-VBsemi.pdf
Description
N-Channel 20V MOSFET
