TSM2314

20V N-Channel MOSFET

Taiwan Semiconductor

TSM2314 Features

* Advance Trench Process Technology

* High Density Cell Design for Ultra Low On-resistance Block Diagram Application

* Load Switch

* PA Switch Ordering Information ID (A) 4.9 4.4 2.9 Part No. Package Packing TSM2314CX RF SOT-23 3Kpcs / 7” Reel TSM2314CX RFG SOT-23 3Kpcs / 7

TSM2314 General Description

only. No license, express or implied, to any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC pr.

TSM2314 Datasheet (171.02 KB)

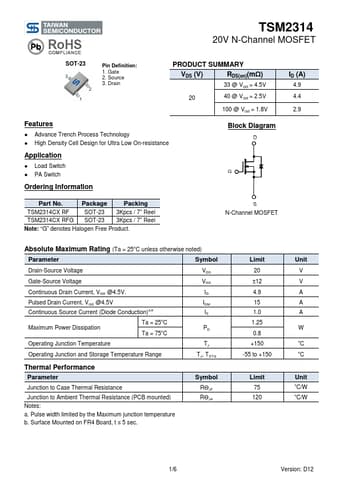

TSM2314 Datasheet Preview — Preview of TSM2314 PDF

Datasheet Details

Part number:

TSM2314

Manufacturer:

Taiwan Semiconductor

File Size:

171.02 KB

Description:

20v n-channel mosfet.
TSM2314 20V N-Channel MOSFET SOT-23 Pin Definition: 1. Gate 2. Source 3. Drain PRODUCT SUMMARY VDS (V) RDS(on)(mΩ) 33 @ VGS = 4.5V 20 40 @ VGS .
