* Advanced trench process technology High density cell design for ultra low on-resistance Excellent thermal and electrical capabilities Compact and low profile SOT-23 package Block Diagram Ordering Information Part No. TSM2311CX Packing Tape & Reel Package SOT-23 Absolute Maximum Rating (Ta = 25 oC
TSM2311
Taiwan Semiconductor Company
186.41 KB
20v p-channel enhancement mode mosfet.
TSM2311

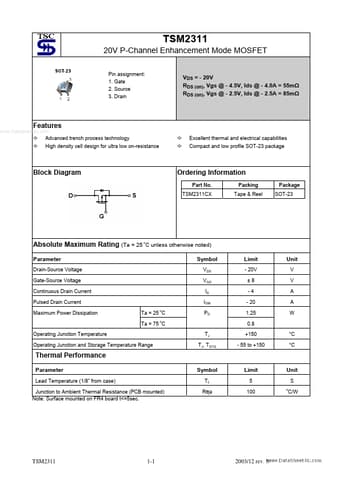

20V P-Channel Enhancement Mode MOSFET
Pin assignment: 1. Gate 2. Source 3. Drain
VDS = - 20V RDS (on), Vgs @ - 4.5V, Ids @ - 4.0A = 55mΩ RDS .
