VBE2345, P-Channel MOSFET

VBE2345 P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.035 at VGS = - 10 V 0.054 at VGS = - 4.5 V ID (A)d - 38 - 20 Q.

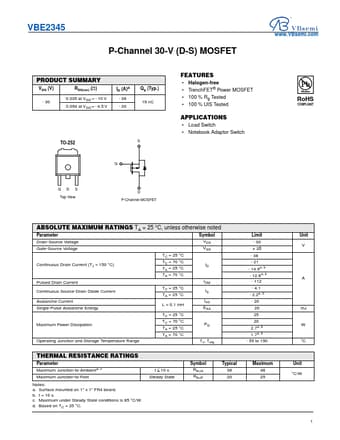

datasheet Preview Page 1 from Datasheet4u.com

VBE2345-VBsemi.pdf

VBE2345 Datasheet Preview — Preview of VBE2345 PDF

Datasheet Details

Part number:

VBE2345

Manufacturer:

VBsemi

File Size:

248.00 KB

Description:

P-Channel MOSFET

Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* Notebook Adaptor Switch www. VBsemi. com RoHS COMPLIANT GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 15
