VS3606AD - N-Channel Advanced Power MOSFET

Datasheet Summary

Features

  • N-Channel，5V Logic Level Control.
  • Enhancement mode.
  • Very low on-resistance RDS(on) @ VGS=4.5 V.
  • Fast Switching.
  • 100% Avalanche test.
  • Pb-free lead plating; RoHS compliant VS3606AD 30V/110A N-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=10 V R @DS(on),TYP VGS=4.5 V ID 30 V 2.6 mΩ 3.5 mΩ 110 A TO-252 Part ID VS3606AD Package Type TO-252 Marking 3606AD Tape and reel information 2500pcs/Reel Maximum ratings, at TA =25°C, unless otherwise specified Symb.

📥 Download Datasheet

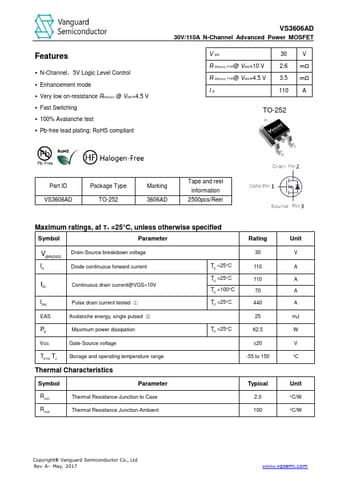

Datasheet preview – VS3606AD

Datasheet Details

Part number VS3606AD
Manufacturer Vanguard Semiconductor
File Size 483.82 KB
Description N-Channel Advanced Power MOSFET
Datasheet download datasheet VS3606AD Datasheet
