VSM030P10MS

P-Channel Advanced Power MOSFET

VSM030P10MS Features

* P-Channel，-5V Logic level Control

* Enhancement mode

* Very low on-resistance RDS(on) @ VGS=-4.5 V

* Fast Switching

* 100% Avalanche Tested

* Pb-free lead plating; RoHS compliant VSM030P10MS -100V/-55A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on)

VSM030P10MS Datasheet (372.24 KB)

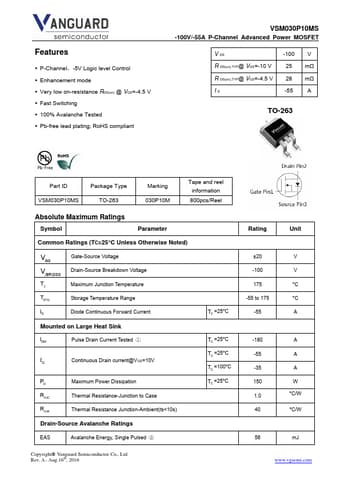

Preview of VSM030P10MS PDF

Datasheet Details

Part number:

VSM030P10MS

Manufacturer:

Vanguard Semiconductor

File Size:

372.24 KB

Description:

P-channel advanced power mosfet.
