VST030P10MS - P-Channel Advanced Power MOSFET

Name: VST030P10MS
SKU: VST030P10MS-1300627

Vanguard Semiconductor

The VST030P10MS by Vanguard Semiconductor is a P-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VST030P10MS
Manufacturer	Vanguard Semiconductor
File Size	333.31 KB
Description	P-Channel Advanced Power MOSFET
Datasheet	VST030P10MS-VanguardSemiconductor.pdf

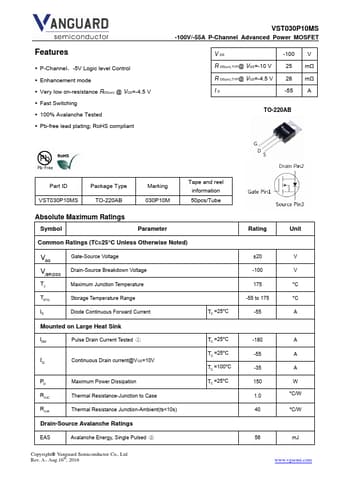

Additional preview pages of the VST030P10MS datasheet.

P-Channel，-5V Logic level Control.
Enhancement mode.
Very low on-resistance RDS(on) @ VGS=-4.5 V.
Fast Switching.
100% Avalanche Tested.
Pb-free lead plating; RoHS compliant VST030P10MS -100V/-55A P-Channel Advanced Power MOSFET V DS R @DS(on),TYP VGS=-10 V R @DS(on),TYP VGS=-4.5 V ID -100 25 28 -55 V mΩ mΩ A TO-220AB Part ID VST030P10MS Package Type TO-220AB Marking 030P10M Tape and reel information 50pcs/Tube Absolute Maximum Ratings Symbol Parameter.
