VSF270N80HS - 800V/11A N-Channel Advanced Power MOSFET

The VSF270N80HS by Vergiga is a 800V/11A N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	VSF270N80HS
Manufacturer	Vergiga
File Size	1.00 MB
Description	800V/11A N-Channel Advanced Power MOSFET
Datasheet	VSF270N80HS-Vergiga.pdf

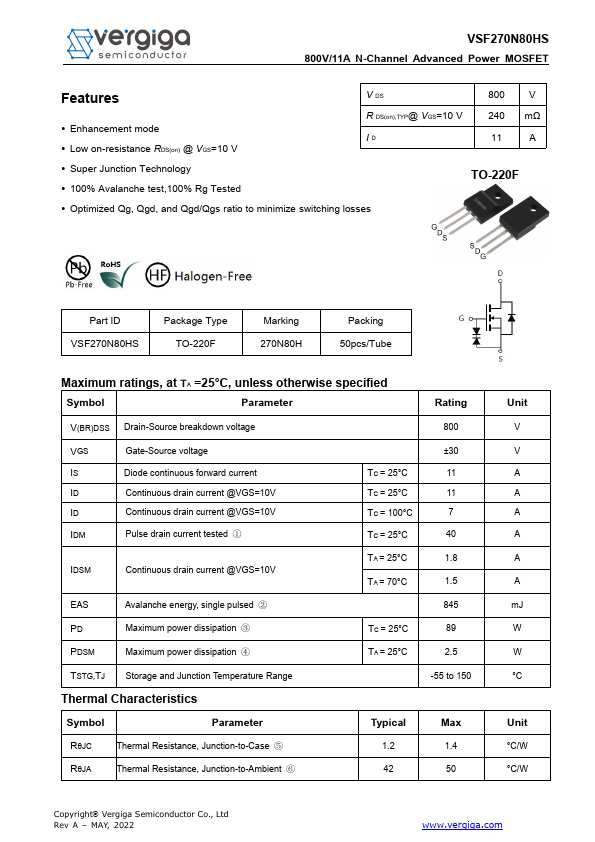

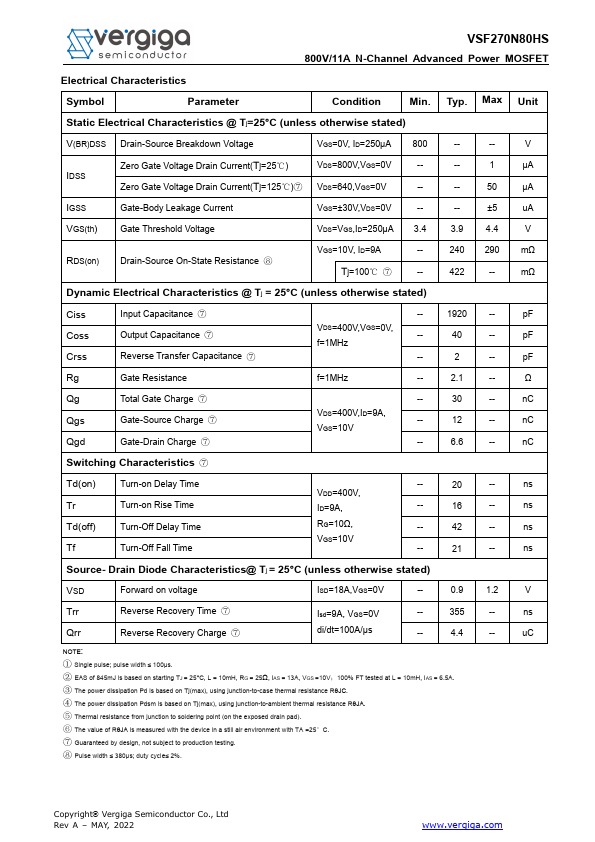

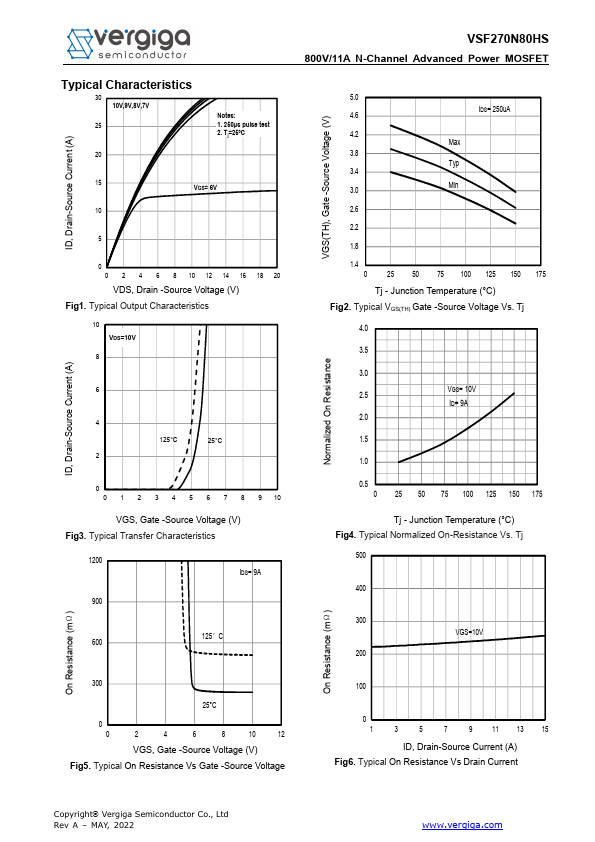

Additional preview pages of the VSF270N80HS datasheet.

Enhancement mode.
Low on-resistance RDS(on) @ VGS=10 V V DS R @ DS(on),TYP VGS=10 V ID 800 V 240 mΩ 11 A.
Super Junction Technology.
100% Avalanche test,100% Rg Tested TO-220F.
Optimized Qg, Qgd, and Qgd/Qgs ratio to minimize switching losses Part ID VSF270N80HS Package Type TO-220F Marking 270N80H Packing 50pcs/Tube Maximum ratings, at TA =25°C, unless otherwise specified Symbol Parameter Rating V(BR)DSS Drain-Source breakdown voltage 800 VGS IS ID I.
