VK1S56D - 14x4 LCD Driver

VinKa

📥 Download Datasheet

VK1S56D Datasheet Preview — Preview of VK1S56D PDF

Datasheet Details

Part number: VK1S56D
Manufacturer: VinKa
File Size: 5.02 MB
Datasheet: VK1S56D-VinKa.pdf
Description: 14x4 LCD Driver

VK1S56D Product details

Description

VK1S56D 14×4 LCD DRIVER VK1S56D is a RAM Mapping 14x4 LCD Driver，It can support LCD screens with a maximum of 56 pattern(14SEGx4COM), it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1S56D,it is used to configure display parameters and transfer display data, and can also enter the standby mode through Power down command.February 2020 Rev.1.3 2/17 www.szvinka.com 2 Pinouts and pin description 2.1 VK1S56D SSOP24L Pin Assignment

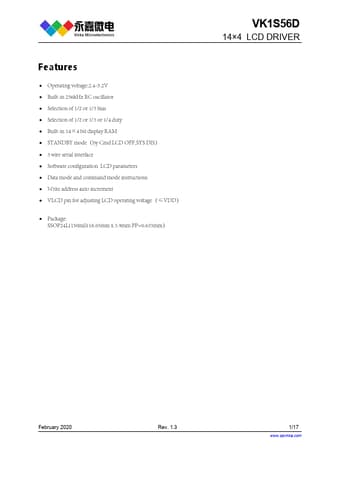

Features

Operating voltage:2.4-5.2V.
Built-in 256kHz RC oscillator.
Selection of 1/2 or 1/3 bias.
Selection of 1/2 or 1/3 or 1/4 duty.
Built-in 14×4 bit display RAM.
