Description

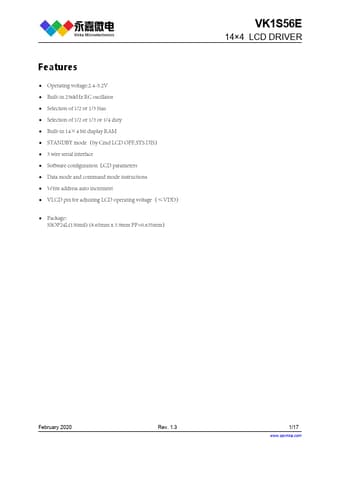

VK1S56E 14×4 LCD DRIVER VK1S56E is a RAM Mapping 14x4 LCD Driver，It can support LCD screens with a maximum of 56 pattern(14SEGx4COM), it is also supports LCD screens of 2COM or 3COM.Only 3 lines are required to communication interface with the VK1S56D,it is used to configure display parameters and transfer display data, and can also enter the standby mode through Power down command.February 2020 Rev.1.3 2/17 www.szvinka.com 3 Pinouts and pin description 3.1 VK1S56E SSOP24L Pin Assignment
