GB100DA60UP

Insulated Gate Bipolar Transistor

GB100DA60UP Features

* NPT warp 2 speed IGBT technology with positive temperature coefficient

* Square RBSOA

* HEXFRED® antiparallel diodes with ultrasoft reverse recovery SOT-227

* Fully isolated package

* Very low internal inductance ( 5 nH typical)

* Industry standard

GB100DA60UP Datasheet (250.62 KB)

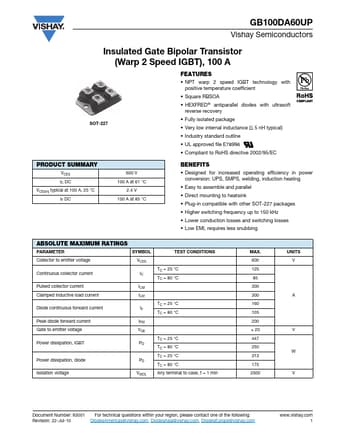

Preview of GB100DA60UP PDF

Datasheet Details

Part number:

GB100DA60UP

Manufacturer:

Vishay ↗ Siliconix

File Size:

250.62 KB

Description:

Insulated gate bipolar transistor.
