IHLP-6767GZ-11 Commercial Inductors

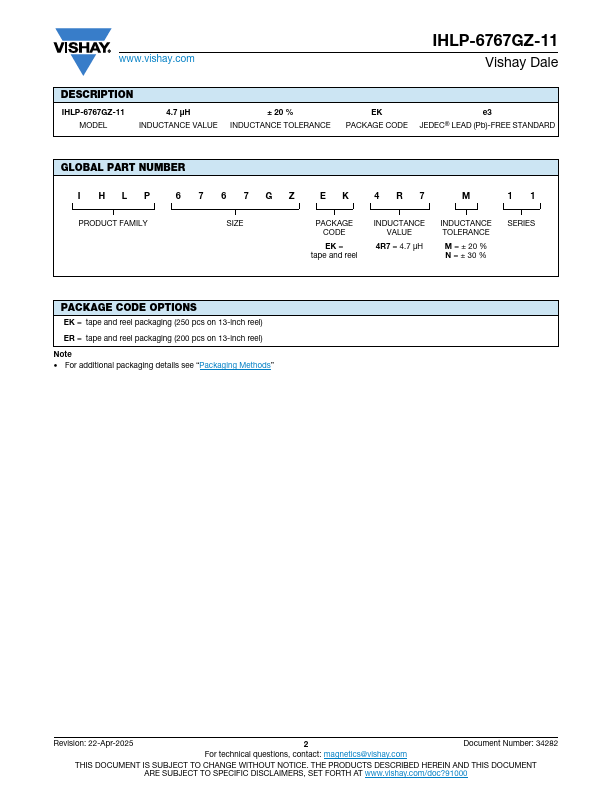

IHLP-6767GZ-11 4.7 μH MODEL INDUCTANCE VALUE ± 20 % INDUCTANCE TOLERANCE EK e3 PACKAGE CODE JEDEC® LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I HLP 6 7 6 7GZ EK 4R7 M 11 PRODUCT FAMILY SIZE PACKAGE CODE EK = tape and reel INDUCTANCE VALUE 4R7 = 4.7 μH INDUCTANCE TOLERANCE M = ± 2.

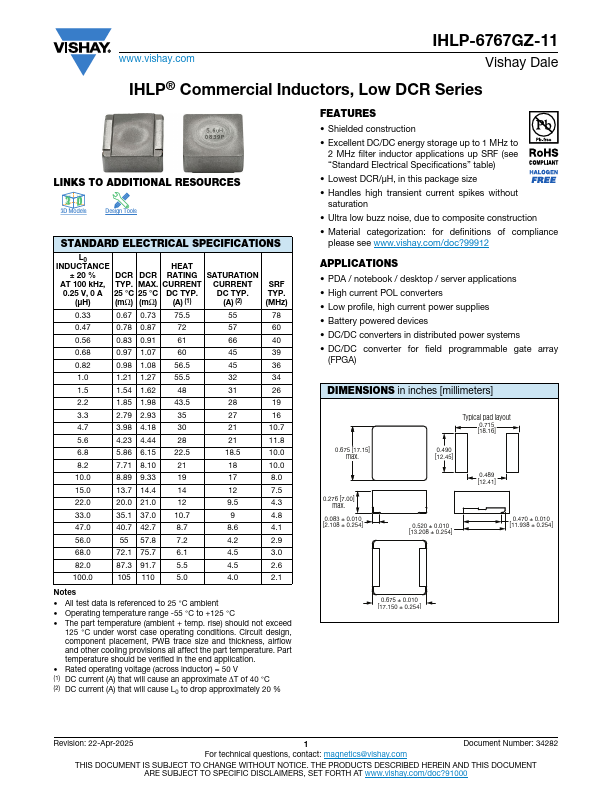

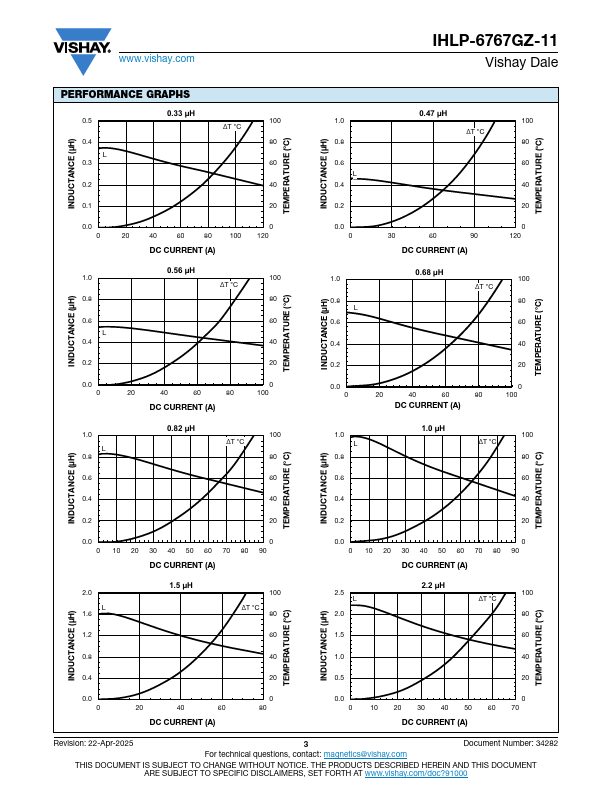

www.vishay.com IHLP-6767GZ-11 Vishay Dale IHLP® Commercial Inductors, Low DCR Series LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Design Tools STANDARD ELECTRICAL SPECIFICATIONS L0 INDUCTANCE HEAT ± 20 % DCR DCR RATING SATURATION AT 100 kHz, TYP. MAX. CURRENT CURRENT 0.25 V, 0 A 25 °C 25 °C DC TYP. DC TYP. (μH) (mΩ) (mΩ) (A) (1) (A) (2) SRF TYP. (MHz) 0.33 0.67 0.73 75.5 55 78 0.47 0.78 0.87 72 57 60 0.56 0.83 0.91 61 66 40 0.68 0.97 1.07 60 45 39 0.82 0.98 1.

IHLP-6767GZ-11 Features

* Shielded construction

* Excellent DC/DC energy storage up to 1 MHz to 2 MHz filter inductor applications up SRF (see “Standard Electrical Specifications” table)

* Lowest DCR/μH, in this package size

* Handles high transient current spikes without saturation

IHLP-6767GZ-11 Datasheet (511.02 KB)
