MBRF1090 - High Voltage Schottky Rectifiers

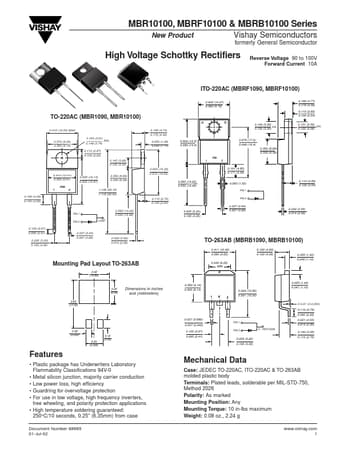

MBR10100, MBRF10100 & MBRB10100 Series New Product Vishay Semiconductors formerly General Semiconductor Reverse Voltage 90 to 100V Forward Current 10A High Voltage Schottky Rectifiers ITO-220AC (MBRF1090, MBRF10100) 0.405 (10.27) 0.383 (9.72) 0.188 (4.77) 0.172 (4.36) 0.110 (2.80) 0.100 (2.54) 0.140 (3.56) DIA. 0.130 (3.30) 0.131 (3.39) DIA. 0.122 (3.08) TO-220AC (MBR1090, MBR10100) 0.415 (10.54) MAX. 0.154 (3.91) 0.370 (9.40) 0.360 (9.14) 0.148 (3.74) 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) .

MBRF1090 Features

* Plastic package has Underwriters Laboratory Flammability Classifications 94V-0

* Metal silicon junction, majority carrier conduction

* Low power loss, high efficiency

* Guardring for overvoltage protection

* For use in low voltage, high frequency inverters,
