MBRF10H35 Datasheet - Vishay Siliconix

MBRF10H35 Schottky Barrier Rectifiers

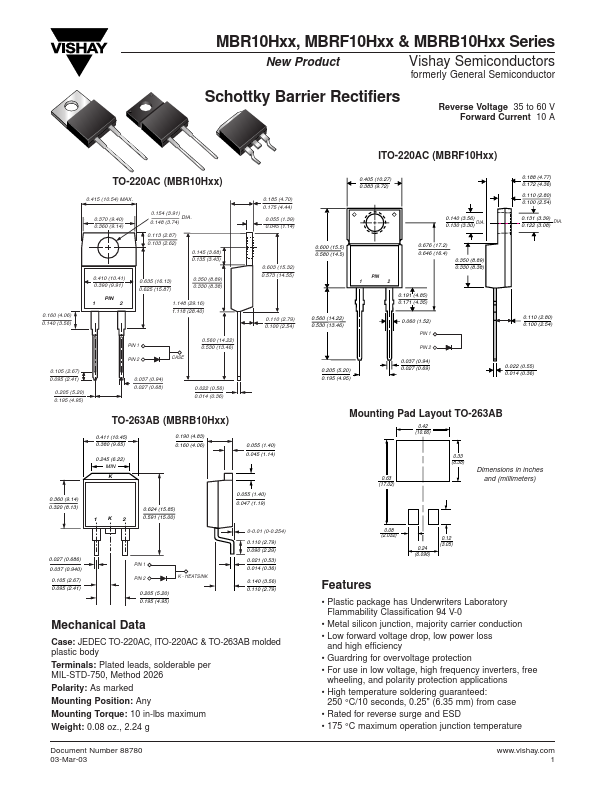

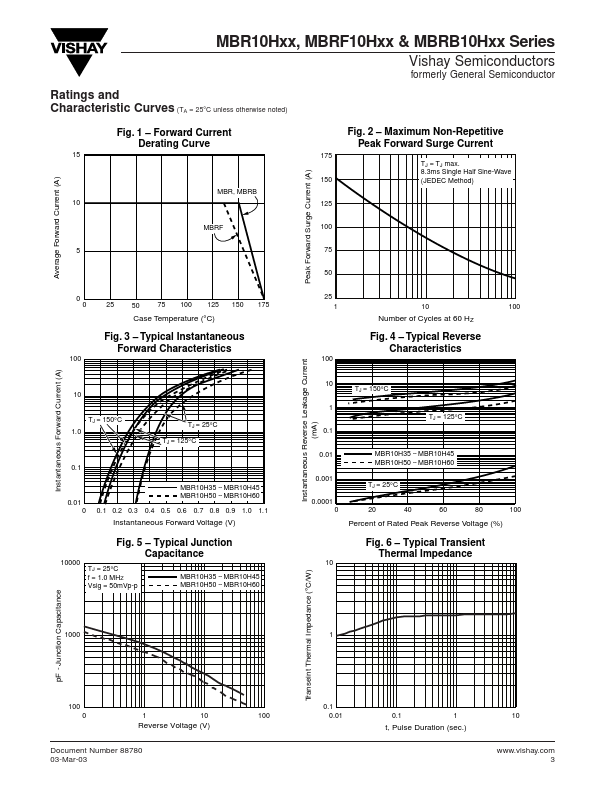

MBR10Hxx, MBRF10Hxx & MBRB10Hxx Series New Product Vishay Semiconductors formerly General Semiconductor Reverse Voltage 35 to 60 V Forward Current 10 A Schottky Barrier Rectifiers ITO-220AC (MBRF10Hxx) TO-220AC (MBR10Hxx) 0.415 (10.54) MAX. 0.154 (3.91) 0.370 (9.40) 0.360 (9.14) 0.148 (3.74) 0.113 (2.87) 0.103 (2.62) 0.145 (3.68) 0.135 (3.43) 0.410 (10.41) 0.390 (9.91) PIN 1 0.160 (4.06) 0.140 (3.56) 2 1.148 (29.16) 1.118 (28.40) 0.110 (2.79) 0.100 (2.54) 0.560 (14.22) 0.530 (13.46) CASE 0.4.

MBRF10H35 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

* Metal silicon junction, majority carrier conduction

* Low forward voltage drop, low power loss and high efficiency

* Guardring for overvoltage protection

* For use in low voltag

MBRF10H35 Datasheet (72.46 KB)
