MBRF10H100, MBR10H100 Datasheet - Vishay

MBRF10H100 High Voltage Schottky Rectifier

www.vishay.com MBR10H100, MBRF10H100, MBRB10H100 Vishay General Semiconductor High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AC ITO-220AC MBR10H100 PIN 1 2 1 1 MBRF10H100 PIN 1 PIN 2 CASE PIN 2 D2PAK (TO-263AB) K 2 2 1 MBRB10H100 PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. Package 10 A 100 V 250 A 0.64 V 4.5 μA 175 °C T.

MBRF10H100 Features

* Power pack

* Guardring for overvoltage protection

* Low power loss, high efficiency

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF max

MBR10H100-Vishay.pdf

This datasheet PDF includes multiple part numbers: MBRF10H100, MBR10H100. Please refer to the document for exact specifications by model.

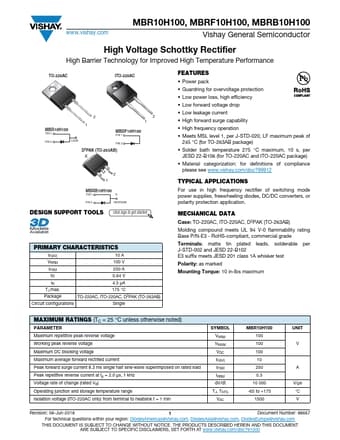

MBRF10H100 Datasheet Preview Page 2 MBRF10H100 Datasheet Preview Page 3
