MBRF10H90, MBR10H90 - High Voltage Schottky Rectifier

MBRF10H90 Description

MBR(F,B)10H90, MBR(F,B)10H100 www.vishay.com Vishay General Semiconductor High Voltage Schottky Rectifier High Barrier Technology for Improved High .

MBRF10H90 Features

* TO-220AC ITO-220AC
* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability 2 MBR10H90 MBR10H100 PIN 1 PIN 2 2 1 MBRF10H90 MBRF10H100 PIN 1 PIN 2
* Hig

MBRF10H90 Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. 10 A 90 V, 100 V 250 A 0.64 V 4.5 μA 175 °C Case: TO-220AC, ITO-220AC, TO-263AB Mol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF10H90, MBR10H90. Please refer to the document for exact specifications by model.

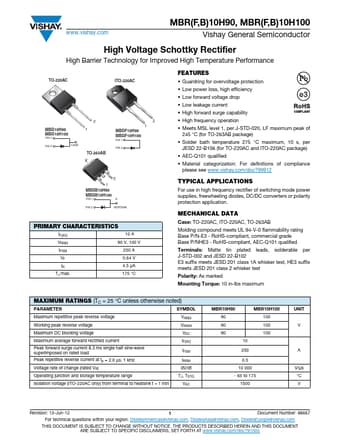

datasheet Preview Page 2 datasheet Preview Page 3
