MBRF10H90CT, MBR10H90CT Datasheet - Vishay

MBRF10H90CT - Dual Common Cathode High Voltage Schottky Rectifier

www.vishay.com MBR(F,B)10H90CT, MBR(F,B)10H100CT Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AB ITO-220AB MBR10H90CT MBR10H100CT PIN 1 PIN 2 PIN 3 CASE 3 2 1 TO-263AB K 123 MBRF10H90CT MBRF10H100CT PIN 1 PIN 2 PIN 3 2 1 MBRB10H90CT MBRB10H100CT PIN 1 K PIN 2 HEATSINK PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max.

5Ax2 90 V, 100 V 150 A 0.61 V 3.5 μA 175 °C

MBRF10H90CT Features

* Guardring for overvoltage protection

* Low power loss, high efficiency

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (

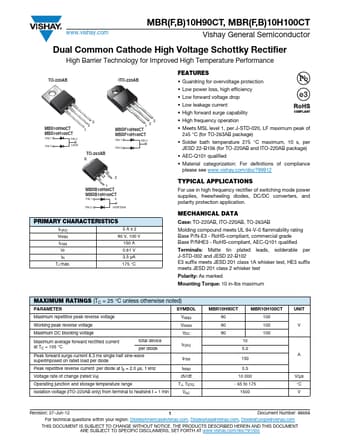

MBR10H90CT-Vishay.pdf

This datasheet PDF includes multiple part numbers: MBRF10H90CT, MBR10H90CT. Please refer to the document for exact specifications by model.
MBRF10H90CT Datasheet Preview Page 2 MBRF10H90CT Datasheet Preview Page 3

Datasheet Details

Part number:

MBRF10H90CT, MBR10H90CT

Manufacturer:

Vishay ↗

File Size:

145.17 KB

Description:

Dual common cathode high voltage schottky rectifier.

Note:

This datasheet PDF includes multiple part numbers: MBRF10H90CT, MBR10H90CT.
Please refer to the document for exact specifications by model.
