SUM23N15-73 N-Channel MOSFET

SUM23N15-73 Description

SUM23N15-73 Vishay Siliconix N-Channel 150 V (D-S) 175 °C MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () 0.073 at VGS = 10 V 150 0.077 at VGS = 6 V T.

SUM23N15-73 Features

* TrenchFET® Power MOSFETS
* 175 °C Junction Temperature
* Low Thermal Resistance Package
* PWM Optimized

SUM23N15-73 Applications

* Primary Side Switch D GDS Top View Ordering Information: SUM23N15-73-E3 (Lead (Pb) free) G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC

📥 Download Datasheet

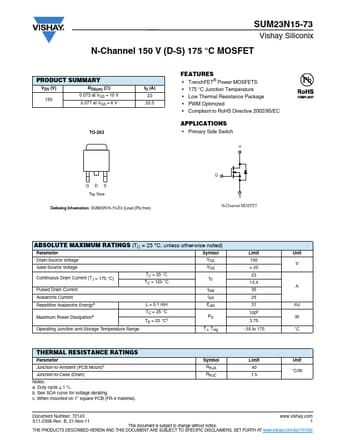

Preview of SUM23N15-73 PDF
datasheet Preview Page 2 datasheet Preview Page 3
