VB40100C - Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Vishay Siliconix

Datasheet Details

Part number	VB40100C
Manufacturer	Vishay Siliconix
File Size	189.73 KB
Description	Dual High-Voltage Trench MOS Barrier Schottky Rectifier

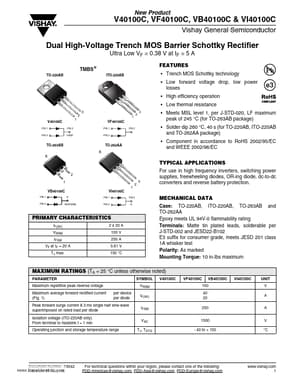

Datasheet	VB40100C_VishaySiliconix.pdf

Trench MOS Schottky technology.
Low forward voltage drop, low power losses.
High efficiency operation.
Low thermal resistance 2 V40100C PIN 1 PIN 3 PIN 2 CASE 3 1 VF40100C PIN 1 PIN 3 PIN 2 2 3 1.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder dip 260 °C, 40 s (for TO-220AB, ITO-220AB and TO-262AA package).
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.
