VB40120C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

VB40120C Description

www.vishay.com V40120C, VF40120C, VB40120C, VI40120C Vishay General Semiconductor Dual High Voltage Trench MOS Barrier Schottky Rectifier Ultra Low .

VB40120C Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for

📥 Download Datasheet

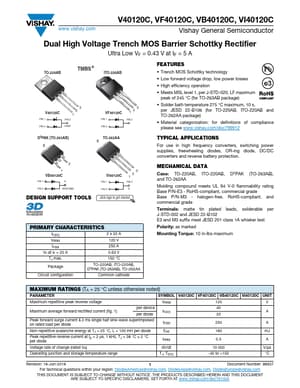

Preview of VB40120C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VB40120C
Manufacturer
Vishay ↗
File Size
204.73 KB
Datasheet
VB40120C_Vishay.pdf
Description
Dual High-Voltage Trench MOS Barrier Schottky Rectifier
