VSLB3940 - High Speed Infrared Emitting Diode

Vishay Siliconix

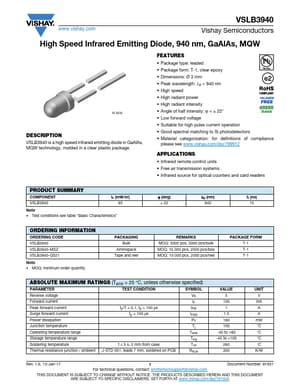

VSLB3940 Datasheet Preview — Preview of VSLB3940 PDF

Datasheet Details

Part number	VSLB3940
Manufacturer	Vishay ↗ Siliconix
File Size	105.89 KB
Description	High Speed Infrared Emitting Diode
Datasheet	VSLB3940_VishaySiliconix.pdf

VSLB3940 Product details

Description

VSLB3940 is a high speed infrared emitting diode in GaAlAs, DDH technology, molded in a clear plastic package. Lead (Pb)-free component Lead (Pb)-free component in accordance RoHS 2002/95/EC and WEEE 2002/96/EC with APPLICATIONS Infrared remote control units PRODUCT SUMMARY COMPONENT VSLB3940 Ie (mW/sr) 65 ϕ (deg) ± 22 λp (nm) 940 tr (ns) 15 Note Test conditions see table “Basic Characteristics” ORDERING INFORMATION ORDERING CODE VSLB3940 Note MOQ: minimum orde

Features

Package type: leaded.
Package form: T-1, clear epoxy.
Dimensions: Ø 3 mm.
Peak wavelength: λp = 940 nm.
High speed.
High radiant power.
High radiant intensity 94 8636.
Angle of half intensity: ϕ = ± 22°.
Low forward voltage.
Suitable for high pulse current operation.
Good spectral matching to Si photodetectors.
