VSLY3943 High Speed Infrared Emitting Diode

VSLY3943 Description

www.vishay.com VSLY3943 Vishay Semiconductors High Speed Infrared Emitting Diode, 940 nm, Surface Emitter Technology 94 8636 .
As part of the SurfLightTM portfolio, the VSLY3943 is a high speed infrared emitting diode based on surface emitter technology, molded in a blue-gray.

VSLY3943 Features

* Package type: leaded
* Package form: T-1, clear epoxy
* Dimensions: Ø 3 mm
* Peak wavelength: λp = 940 nm
* High speed
* High radiant power
* High radiant intensity
* Angle of half intensity: ϕ = ± 17°
* Low forward voltage

VSLY3943 Applications

* Infrared remote control units
* Free air transmission systems
* Infrared source for optical counters and card readers PRODUCT SUMMARY COMPONENT VSLY3943 Ie (mW/sr) 70 Note
* Test conditions see table “Basic Characteristics” ϕ (deg) ± 17 λp (nm) 940 tr (ns) 5

📥 Download Datasheet

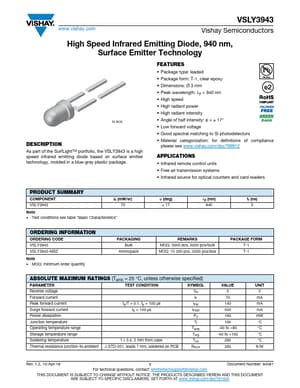

Preview of VSLY3943 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSLY3943
Manufacturer
Vishay ↗
File Size
110.19 KB
Datasheet
VSLY3943-Vishay.pdf
Description
High Speed Infrared Emitting Diode
