VSLB3948 High Speed Infrared Emitting Diode

VSLB3948 Description

www.vishay.com VSLB3948 Vishay Semiconductors High Speed Infrared Emitting Diode, 940 nm, GaAlAs, MQW 94 8488 .
VSLB3948 is a high speed infrared emitting diode in GaAlAs, MQW technology, molded in a clear plastic package. Package type: leade.

VSLB3948 Features

* Package type: leaded
* Package form: T-1, clear epoxy
* Dimensions: Ø 3 mm
* High speed
* High radiant power
* Low forward voltage
* Suitable for high pulse current operation
* Angle of half intensity: ϕ = ± 22°
* Peak wavelen

VSLB3948 Applications

* Infrared remote control units PRODUCT SUMMARY COMPONENT VSLB3948 Ie (mW/sr) 65 Note
* Test conditions see table “Basic Characteristics“ ϕ (deg) ± 22 λp (nm) 940 tr (ns) 15 ORDERING INFORMATION ORDERING CODE VSLB3948 Note
* MOQ: minimum order quantity PACKAGING Bulk

📥 Download Datasheet

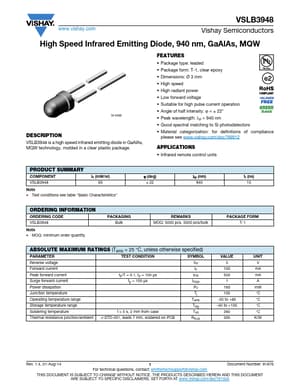

Preview of VSLB3948 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSLB3948
Manufacturer
Vishay ↗
File Size
102.21 KB
Datasheet
VSLB3948-Vishay.pdf
Description
High Speed Infrared Emitting Diode
