VSLB4940 High Speed Infrared Emitting Diode

VSLB4940 Description

www.vishay.com VSLB4940 Vishay Semiconductors High Speed Infrared Emitting Diode, 940 nm, GaAlAs, MQW 94 8636-2 .
VSLB4940 is a high speed infrared emitting diode in GaAlAs, MQW technology, molded in a clear plastic package. Package type: leade.

VSLB4940 Features

* Package type: leaded
* Package form: T-1, clear epoxy
* Dimensions: Ø 3 mm
* High speed
* High radiant power
* Low forward voltage
* Suitable for high pulse current operation
* Angle of half intensity: ϕ = ± 22°
* Peak wavelen

VSLB4940 Applications

* Infrared remote control units
* Reflective sensors
* Light barriers PRODUCT SUMMARY COMPONENT VSLB4940 Ie (mW/sr) 65 Note
* Test conditions see table “Basic Characteristics“ ϕ (deg) ± 22 λp (nm) 940 tr (ns) 15 ORDERING INFORMATION ORDERING CODE VSLB4940 Note

📥 Download Datasheet

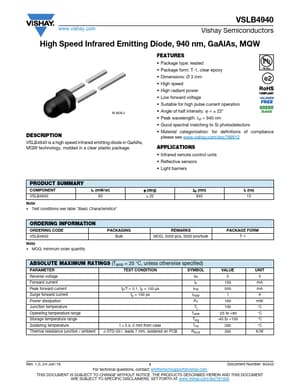

Preview of VSLB4940 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VSLB4940
Manufacturer
Vishay ↗
File Size
103.48 KB
Datasheet
VSLB4940-Vishay.pdf
Description
High Speed Infrared Emitting Diode
