IRFD120 - Power MOSFET

IRFD120 Description

www.vishay.com IRFD120 Vishay Siliconix Power MOSFET D HVMDIP S G D G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs.
Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

IRFD120 Features

* Dynamic dV/dt rating
* Repetitive avalanche rated
* For automatic insertion
* End stackable
* 175 °C operating temperature
* Fast switching
* Ease of paralleling
* Material categorization: for definitions of compliance please see www.

📥 Download Datasheet

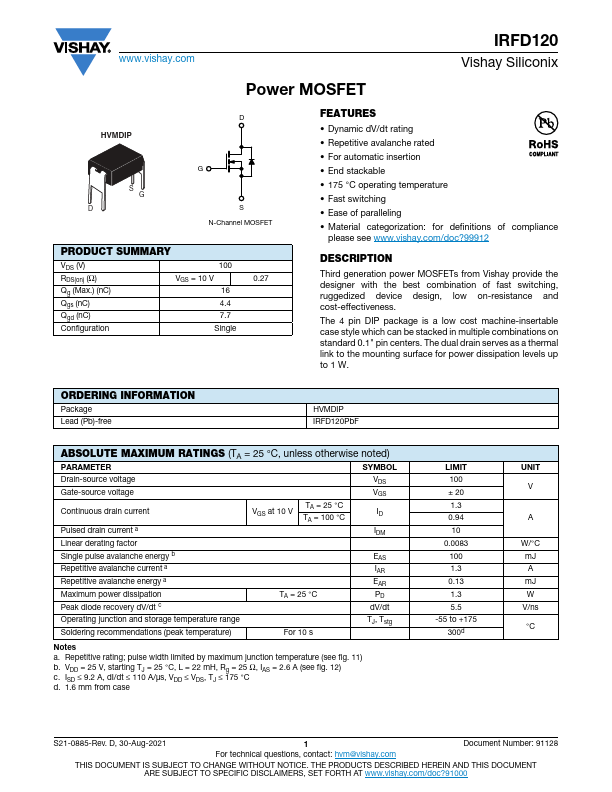

Preview of IRFD120 PDF

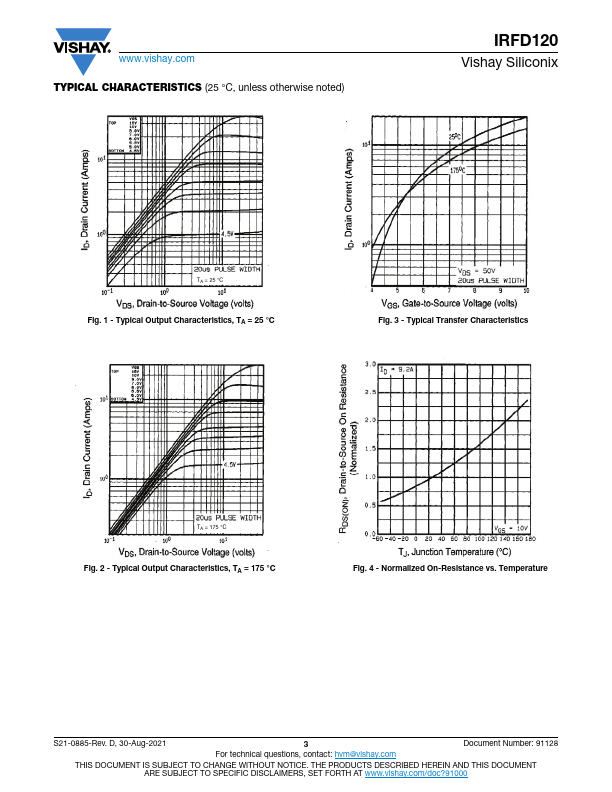

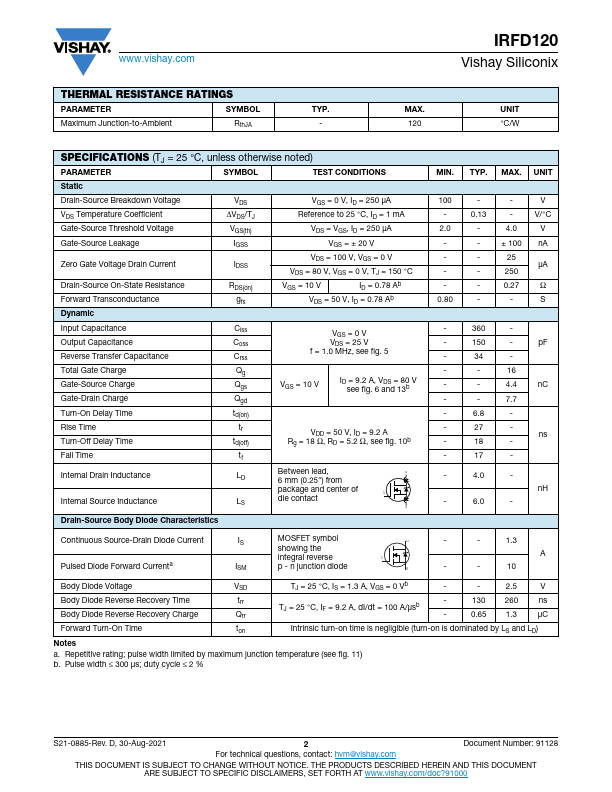

datasheet Preview Page 2 datasheet Preview Page 3
