IRFD420 Datasheet - Vishay

Power MOSFET

IRFD420 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated

* For automatic insertion

* End stackable

* Fast switching

* Ease of paralleling

* Simple drive requirements

* Material categorization: for definitions of compliance please see www.vis

IRFD420 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard.

IRFD420 Datasheet (394.46 KB)

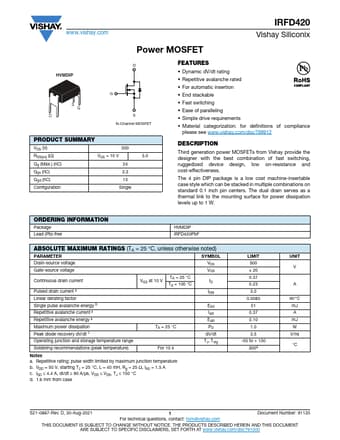

IRFD420 Datasheet Preview — Preview of IRFD420 PDF

Datasheet Details

Part number:

IRFD420

Manufacturer:

Vishay ↗

File Size:

394.46 KB

Description:

Power mosfet.
www.vishay.com IRFD420 Vishay Siliconix Power MOSFET D HVMDIP S G D G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) 500 RDS(on) (Ω) VGS = 10 V .
