SIHLI530G, Power MOSFET

Power MOSFET IRLI530G, SiHLI530G Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 100 VGS = 5.0.
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

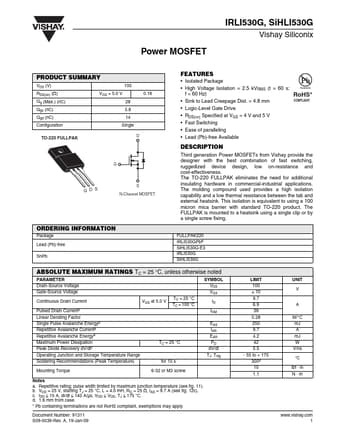

datasheet Preview Page 1 from Datasheet4u.com

SIHLI530G-Vishay.pdf

SIHLI530G Datasheet Preview — Preview of SIHLI530G PDF

Datasheet Details

Part number:

SIHLI530G

Manufacturer:

Vishay ↗

File Size:

1.25 MB

Description:

Power MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; Available f = 60 Hz) RoHS
* Sink to Lead Creepage Dist. = 4.8 mm COMPLIANT
* Logic-Level Gate Drive
* RDS(on) Specified at VGS = 4 V and 5 V
* Fast Switching
* Eas

Applications

* The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single sc
