SIHLI540G Power MOSFET

Vishay

Description

Power MOSFET IRLI540G, SiHLI540G Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 100 VGS = 5 V.
Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistan.

📥 Download Datasheet

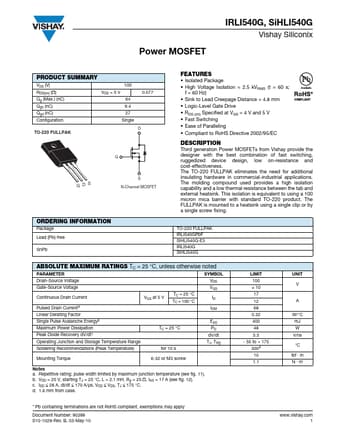

SIHLI540G Datasheet Preview — Preview of SIHLI540G PDF

Datasheet Specifications

Part number: SIHLI540G
Manufacturer: Vishay ↗
File Size: 1.19 MB
Datasheet: SIHLI540G-Vishay.pdf
Description: Power MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* Logic-Level Gate Drive
* RDS (on) Specified at VGS = 4 V and 5 V
* Fast Switching
* Ease of Paralleling
* Complian

Applications

* The molding compound used provides a high isolation capability and a low thermal resistance between the tab and external heatsink. This isolation is equivalent to using a 100 micron mica barrier with standard TO-220 product. The FULLPAK is mounted to a heatsink using a single clip or by a single sc
